![100mm Plastic Pressure Gauge Back Connection 1/8](/uploads/s/d88b7c01f7a94200bbff55e499644e4a.webp)

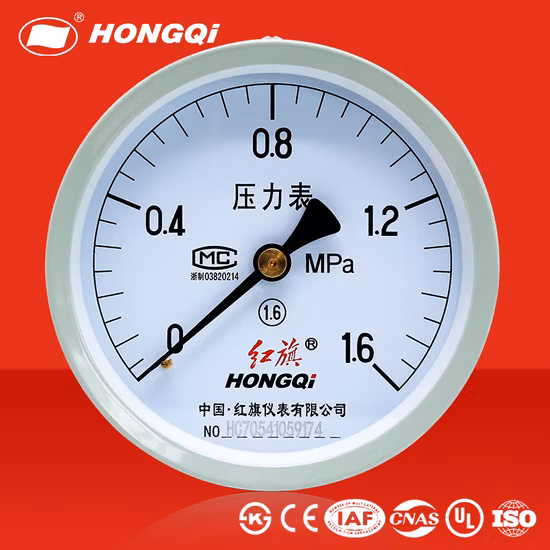

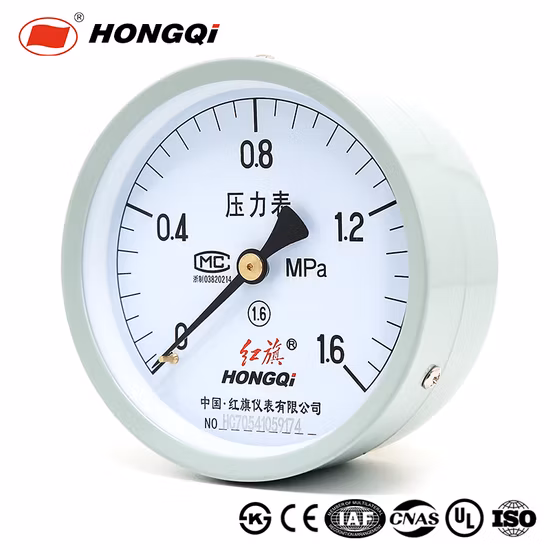

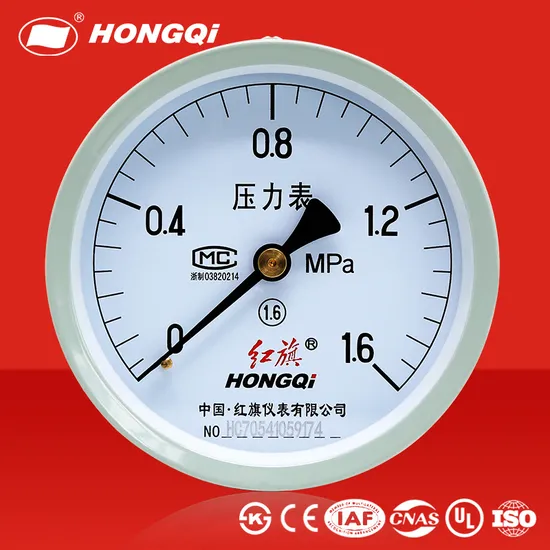

100mm Plastic Pressure Gauge Back Connection 1/8
HongQi instrument Y-series Pressure Gauges: Bottom or Center Back MountApplication: Chemical and petrochemical industrie
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | Y-100Z |
Application | Industrial, Civil, Food, Pharmacy |
Structure | Spring Pressure Gauge |
Connection Type | Axial |
Function | Local Indication Type |
Installation Structure | Direct Mounting |
Features of Measurement Medium | General Pressure Gauge |
Indicating Pressure Reference | General Pressure Gauge |
Movement | Phosphor Bronze |
Pointer | Aluminum, Black |
Socket | Brass |
Bourdon Tube | Phosphor Bronze |
Transport Package | Plastic Bag, Inner Box, Carton Box, Pallet |
Specification | 100mm |
Trademark | HONGQI/OEM |
Origin | China |
HS Code | 9026209090 |
Production Capacity | 500000/Month |
Product Description
HongQi instrument Y-series Pressure Gauges: Bottom or Center Back MountApplication: Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze. SPECIFICATIONSAccuracy | 2.5%, 1.6%, 1.0% |
Ambient temperature | -40°C to +65°C |
Process temperature | Max 100°C (Dry) |
Operating pressure | 75% of the scale value |
Over pressure limit | 25% of full scale value |
Case | painted steel |
Ring | painted steel |
Bourdon Tube | Phosphor Bronze |
Socket | Brass |
Movement | Phosphor Bronze |
Dial | Aluminum, black & red graduation on white background |
Pointer | Aluminum, black |
Window | sheet glass, PC |
Standard Scale | MPa, Kg/cm2, psi/kPa, bar...customized |
Connection | 1/8", 1/4", 1/2" NPT, BSP, G, M20*1.5(customized) |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
FAQ:
1.The Quality Of Our ProductsOur Pressure gauge are all 100% inspected, and with standard production process.2.PriceWe can provide our high quality products with reasonable price.3.OEM servicesIn the past years, we have many OEM orders from very famous company all over the world.4.Delivery We can provides intime delivery. Some stocked models can be instant delivered.5.ServiceWe provide best after-sale service all the time, for our goal is a long trade cooperation term.6.ReputationOur factory have 28 years experiences.We have already gaining the best reputation and response from the customers from all over the world.We may accept consumers order with special requirement for instrument and meter!
